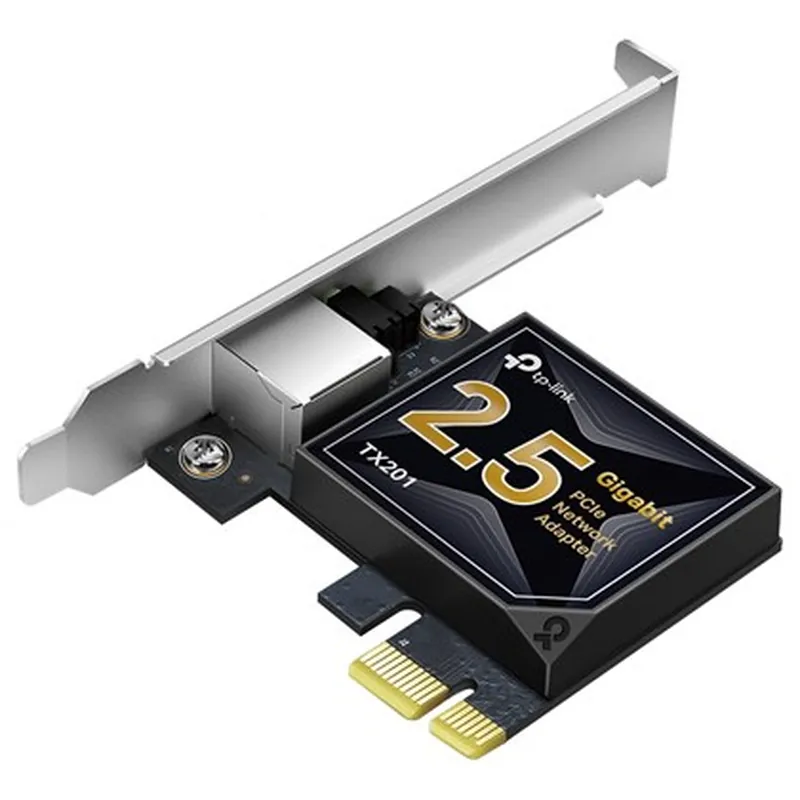

The TP-Link TX201 network card is a modern solution for those who need high-speed data transmission and stable connectivity in home and corporate networks. TP-Link TX201 supports speeds up to 2.5 Gbps, making it an ideal choice for tasks requiring large data transfers, such as streaming video, online gaming, and data transfer between devices on a local network. This speed significantly reduces file upload and download times and ensures high bandwidth when used with server applications and cloud services.
The TP-Link TX201 network card features a PCI-E interface, ensuring easy integration into most modern computers and servers. The PCI-E 2.1 interface optimizes data transfer speeds between the network card and the motherboard, minimizing delays and maximizing system efficiency. Additionally, the RJ-45 port makes TP-Link TX201 a versatile solution for connecting to standard Ethernet network cables.
One of the key advantages of TP-Link TX201 is its support for multiple network standards, including IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u, and IEEE 802.3x. This ensures compatibility with most network devices and routers, guaranteeing stable operation across a wide range of network configurations. This compatibility makes TP-Link TX201 an excellent choice for creating high-speed local networks in offices and data centers.
Another important feature of TP-Link TX201 is its thoughtful low-profile design. Its compact size allows installation in cases with limited space, especially suitable for slim servers and multimedia systems. It comes with a low-profile bracket for easy installation in various types of cases, making TP-Link TX201 a convenient choice for those who value ease of integration and high performance.
TP-Link TX201s energy consumption has also been optimized, reducing electricity costs and heat dissipation. This is particularly important for use in server systems that require stable operation over extended periods. Low energy consumption helps extend the systems lifespan and reduces the load on cooling systems.
TP-Link TX201 supports various operating systems, including Linux and all modern versions of Windows, making it a versatile choice for users with different software preferences. This allows TP-Link TX201 to be seamlessly integrated into existing infrastructure without the need for complex setup and compatibility with different OS environments.
Additionally, TP-Link TX201 features a built-in diagnostic function that quickly identifies connection issues and device status, simplifying network card maintenance, especially for corporate users. The traffic filtering function available in TP-Link TX201 provides additional protection against broadcast storms and other types of network disturbances, significantly enhancing network security and stability.
The TP-Link TX201 network card is a reliable and high-performance device that meets the needs of both professionals and regular users for high-speed network connections. It offers the benefits of modern networking technologies, making it an excellent choice for building high-bandwidth networks with minimal latency. With TP-Link TX201, you get stable connectivity and high-speed data transmission in any network environment, whether its a home setting or corporate infrastructure.
- 2.5 Gbps Networking – 2.5 Gigabit Ethernet reaches blazing-fast data rates up to 2.5 billion bits per second—2.5× faster than standard Gigabit Ethernet. For bandwidth-intensive tasks, whether local data transfer or Internet access, the TX201 is up to the task.
- Versatile Compatibility – With extreme speed and ultra-low latency, 2.5GBase-T is backwards compatible with Fast Ethernet and Gigabit Ethernet, automatically negotiating between higher and lower speed connections.

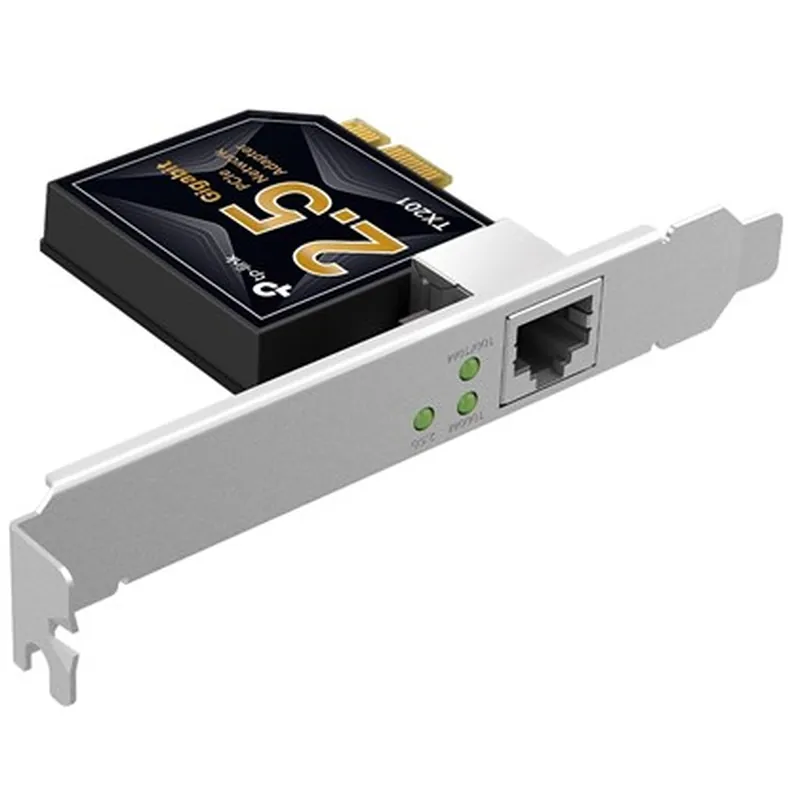

- Low-Profile and Full-Height Brackets – In addition to the standard bracket, a low-profile bracket is provided for mini tower computer cases. Customized options give you the flexibility to find a bracket that perfectly fits your board design.
- Comprehensive System Support – Fully compatible with Windows 11/10/8.1/8/7, Windows Servers 2022/2019/2016/2012 R2/2012/2008 R2, Linux
HARDWARE FEATURES | |
---|---|
Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3x |
Interface | 1× PCI Express 2.1 x 1, 1× RJ45 Gigabit/Megabit Port |
Network Media | 2.5GBASE-T/1000BASE-T/100BASE-TX |
LED | 2.5 Gbps, 1 Gbps, and 100/10 Mbps Link/Act |
Data Rates | 10Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps for Half-Duplex mode, 20Mbps, 200 Mbps, 2 Gbps, 5 Gbps, for Full-Duplex mode |
Dimensions | 120.8 × 98.2 × 21.5 mm (4.8 × 3.9 × 0.8 in) |
Flow Control | 802.3x |
OTHERS | |
---|---|
Certification | FCC, CE, RoHS |
Package Contents | 2.5 Gigabit PCIe Network Adapter (TX201) Standard/Low-Profile Brackets Quick Installation Guide Resource CD |
System Requirements | Windows 11/10/8.1/8/7, Windows Servers 2022/2019/2016/2012 R2/2012/2008 R2, Linux |
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
